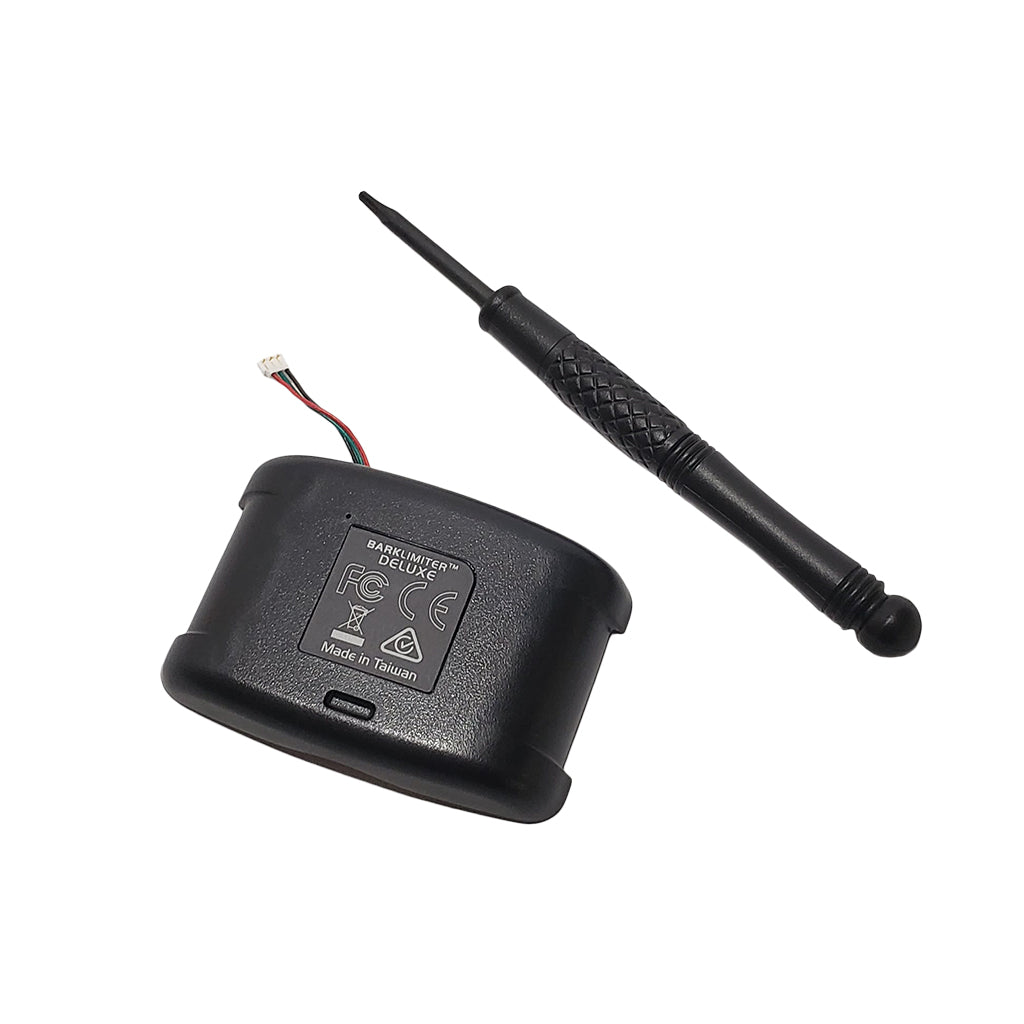

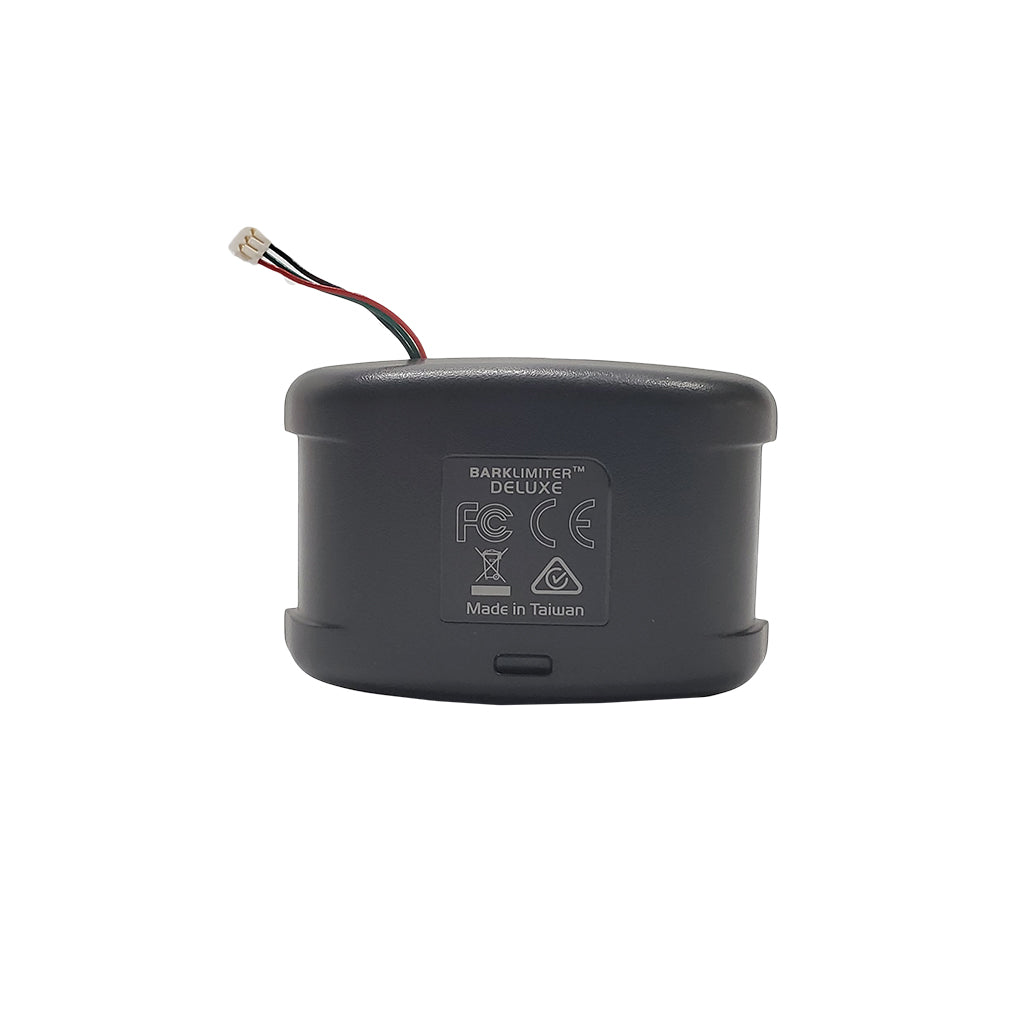

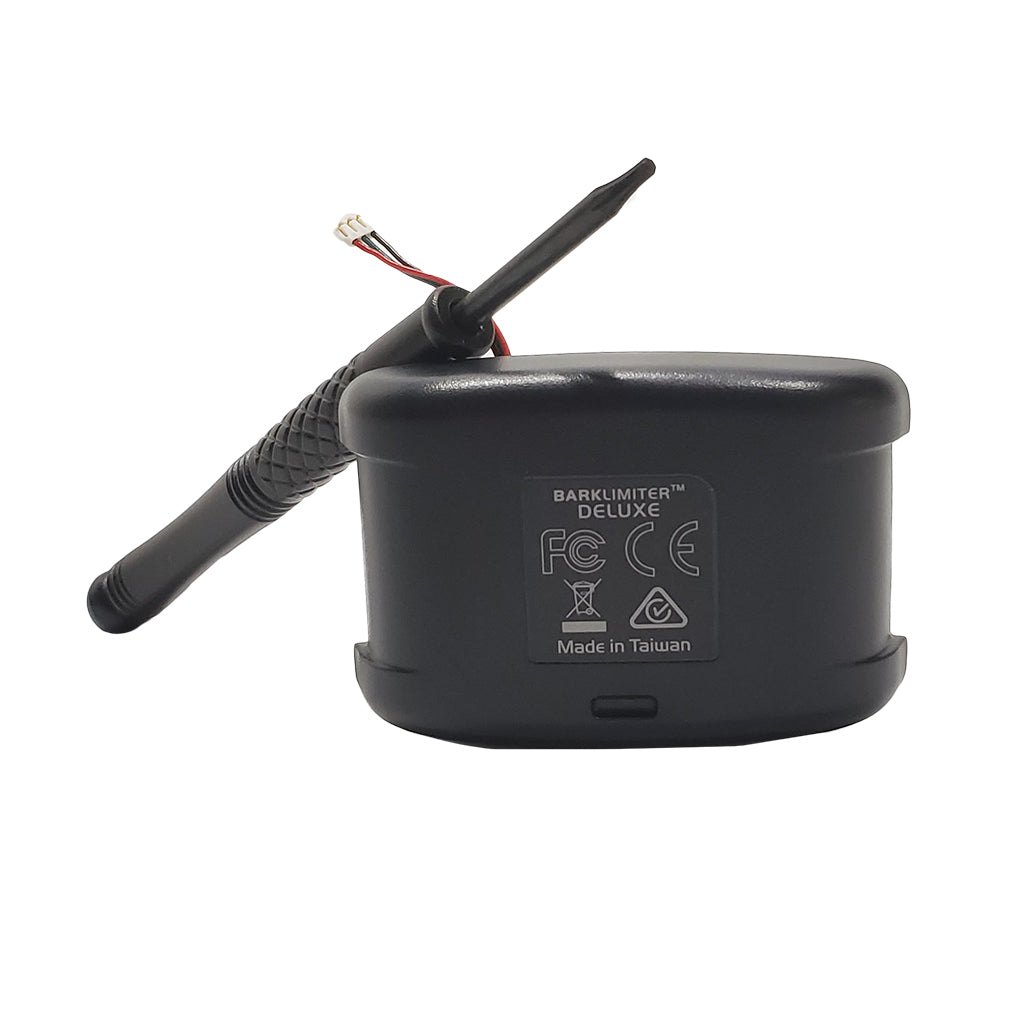

Garmin Bark Limiter Deluxe Replacement Battery Assembly

Garmin Bark Limiter Deluxe Replacement Battery Assembly

Protect the lithium-ion battery in your Bark Limiter Deluxe with this battery and housing. Battery life is normally around 3 months depending number of corrections and activeness of the dog.

Part Number: 010-11867-10

Steps to replace the Garmin Bark Limiter Battery:

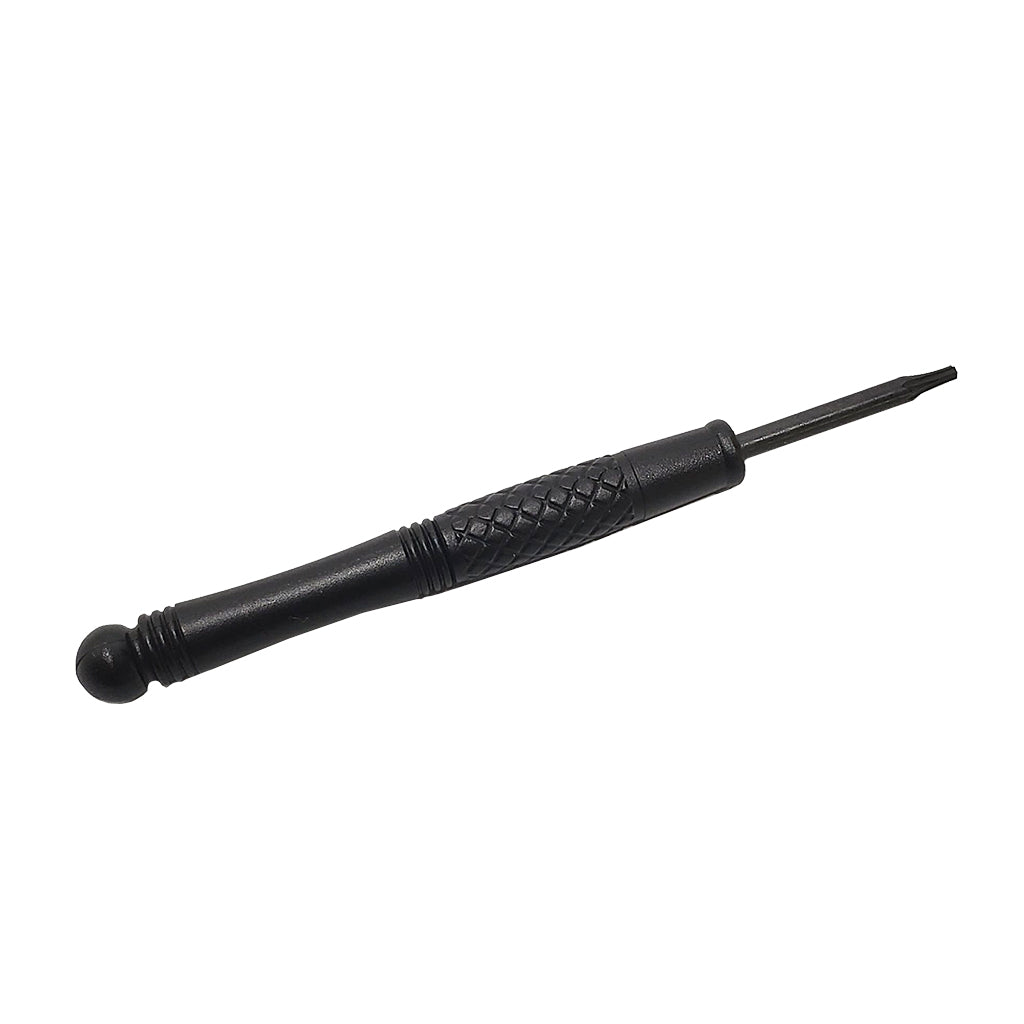

1. Remove the four security screws from the corners of the device.
2. Lift up the battery assembly.
3. Discount the battery connector from the device.
4. With the new battery assembly, connect the battery connector to the device.

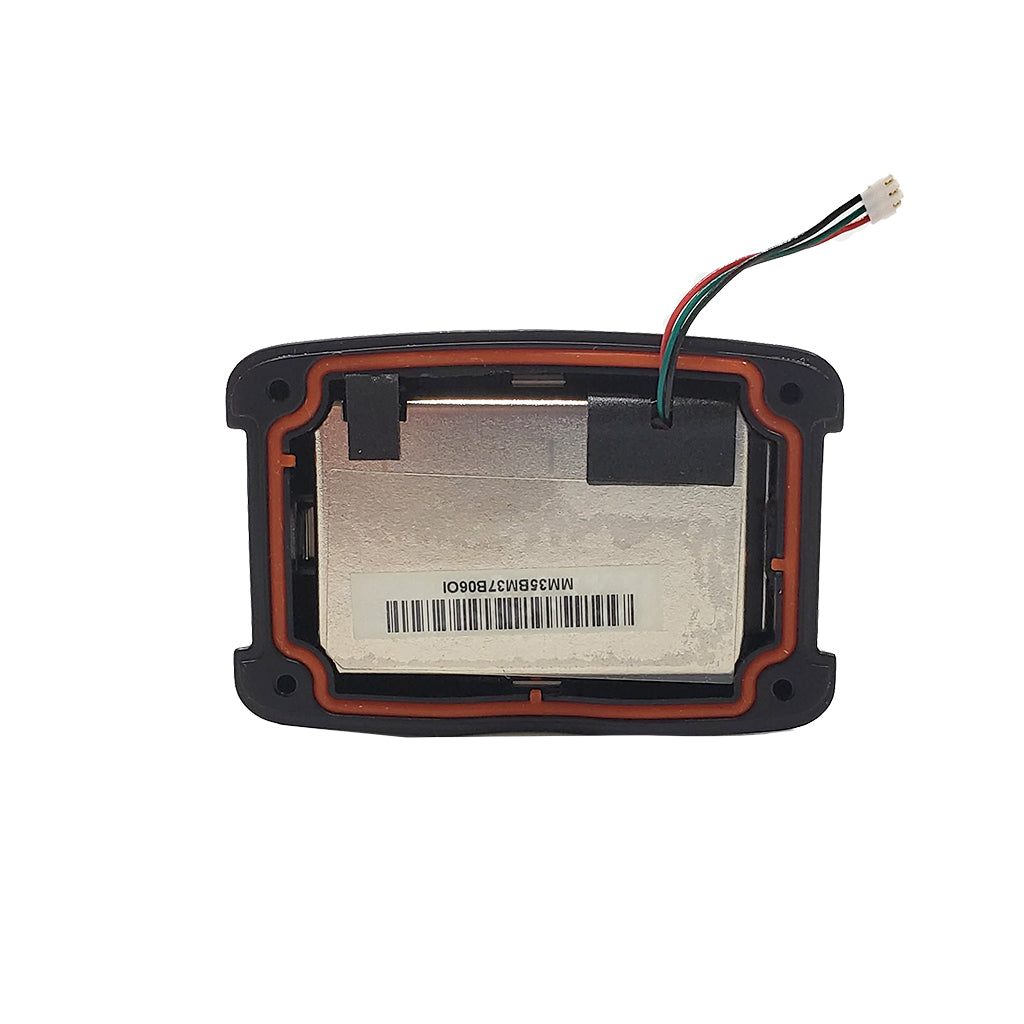

5. Verify that the gasket is not damaged and that it is completely seated in the groove.
6. Hold the battery assembly and the device firmly together, and replace all four security screws without tightening.
7. Verify that the battery assembly and the device are aligned with no gaps.
8. Tighten the screws evenly.
